Engineering the Impossible: A 44m Clear-Span Shade Solution for Central QLD
At Darling Downs Tarpaulins (DDT), we are often approached with "impossible" briefs. Our clients don’t just need a cover; they need a solution that integrates perfectly with their operations without getting in the way.
A recent project for a feedlot in Central Queensland perfectly illustrates this challenge.
The Brief: Total Coverage, Zero Obstructions
The client required a shade solution for a 48m round yard. In an environment involving livestock and riders, internal support posts are more than just an inconvenience, they are a safety hazard.
The requirement was clear: provide maximum shade coverage across the yard with a total clear-span design. This meant the entire structure had to be supported from the perimeter, leaving the ground floor 100% open for movement.
The Engineering: Flexibility Meets Strength
Covering a 44m diameter area without internal supports requires a deep understanding of tension and material dynamics. To meet this challenge, our team designed a radiating shade structure using Monotec 270 shadeknit.
Key Technical Highlights:

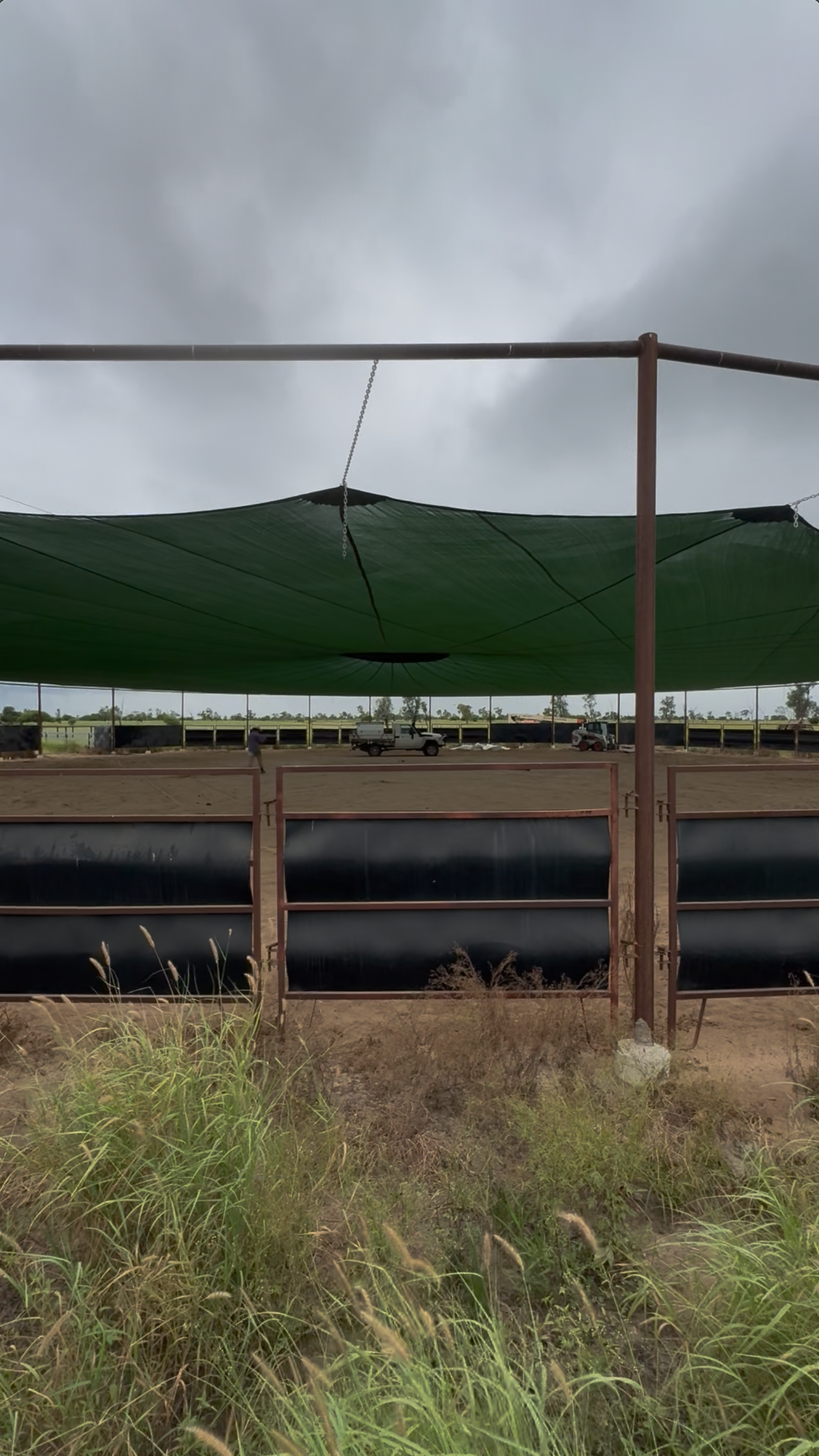

The Centre Point: We utilised a large central "Bale Ring" as the anchor point for the fabric.

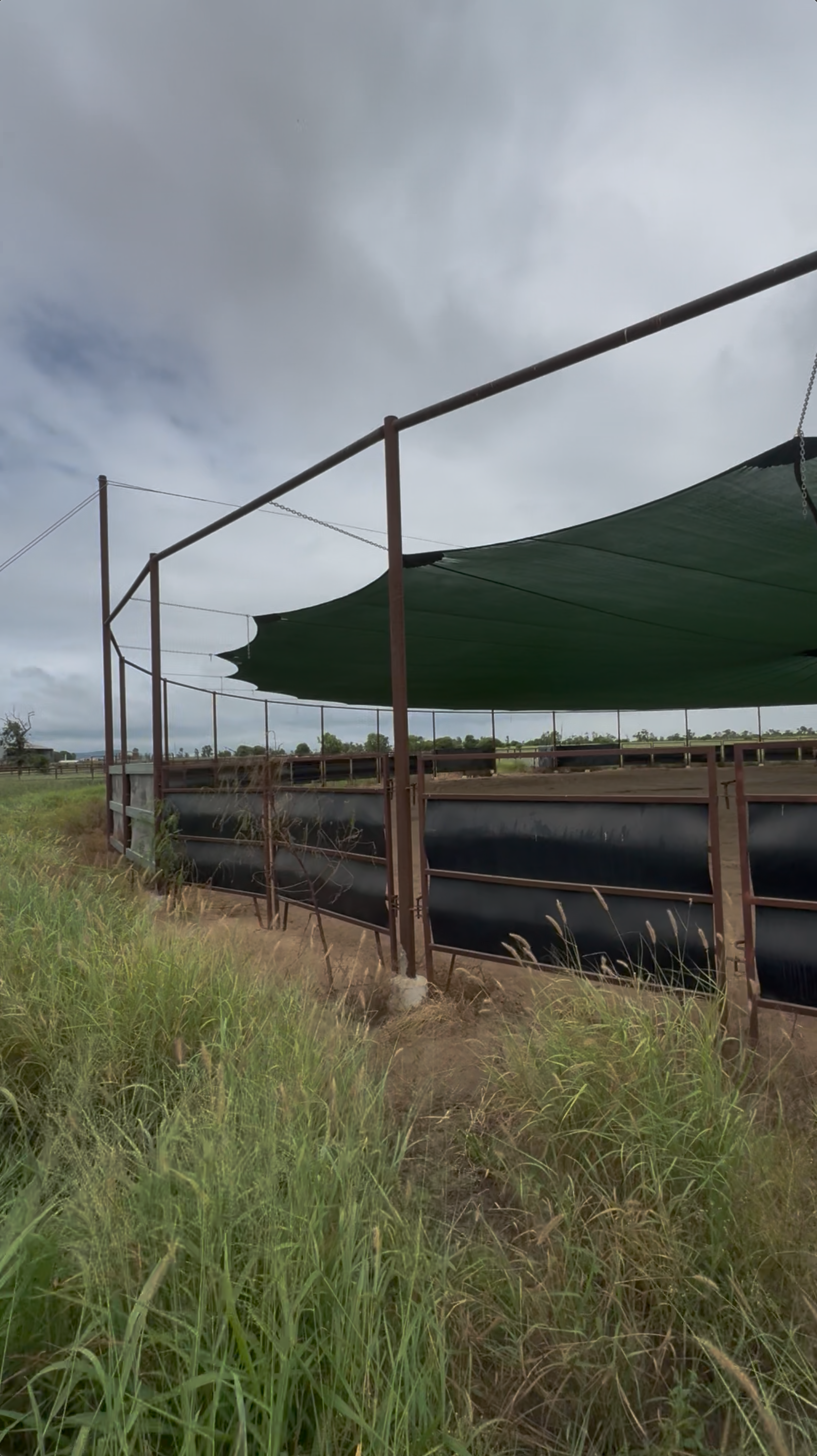

Overhead Support: Instead of a pole underneath, the ring is supported by two high-tension cables suspended from towers outside the yard.

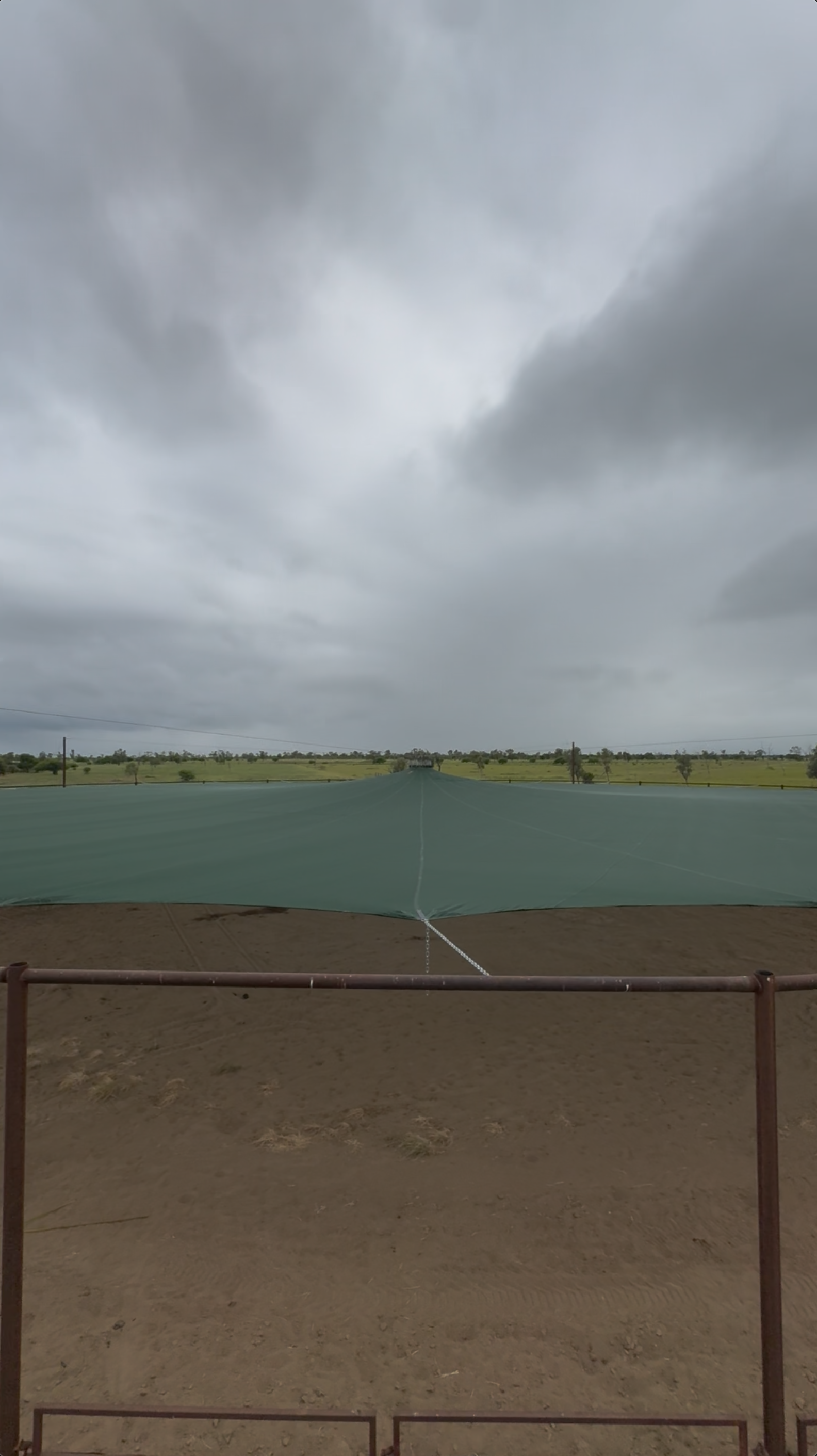

Dynamic Tensioning: By radiating the fabric out from this central ring to multiple anchor points around the circumference, we created a "dynamic" structure.
This design allows the shade to flex naturally with wind and rain loads, dispersing pressure across the entire surface rather than concentrating it on a single point. This flexibility is what ensures the longevity of the structure in the harsh Central QLD climate.

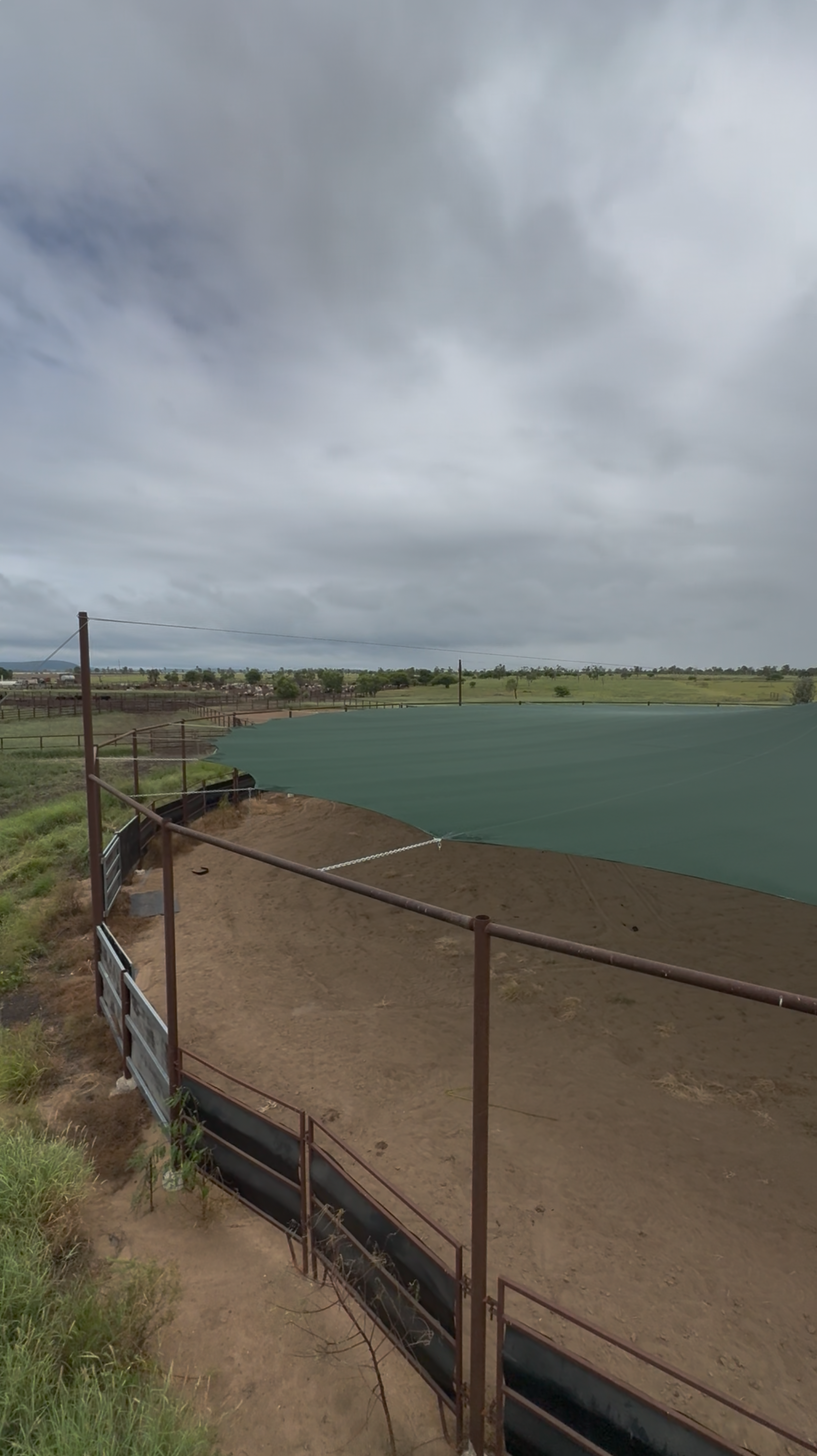

The Result: Protection Without Limits
The final installation provides a $44\text{m}$ diameter of high-quality shade, significantly reducing heat stress for both animals and riders. By using Monotec 270, we’ve ensured the structure is UV-stabilized and built to handle the intense Australian sun for years to come.
The customer was pleased not just with the shade, but with the lack of operational interference. The round yard remains a high-performance workspace, now with the added benefit of climate control.
Why Custom Fabrication Matters
Generic, off-the-shelf shade sails simply cannot handle the scale or the specific structural requirements of a 48m yard. This project highlights why DDT’s “Problem Solver” approach is so vital for regional industry. We don't just provide the fabric; we provide the engineering expertise to make it work.
Whether it’s a feedlot, a grain bunker, or a complex industrial site, our goal remains the same: Innovation You Can Trust.
